Descrição
In a unique endeavor, IKA owner René Stiegelmann has partnered up with Professor Phil S. Baran of the world-renowned Scripps Research Institute in La Jolla, California (USA). Over the past three years, engineers and chemists have worked hand in hand to develop a product combining two divisions of chemistry communities: the Electrochemistry and the mainstream Synthetic Organic Chemistry Communities that traditionally don’t have much in common.

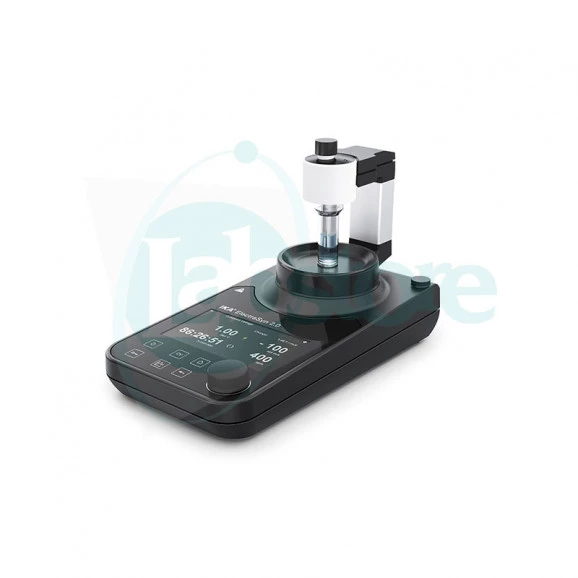

ElectraSyn 2.0 essentially combines three products in one and will facilitate the mass adoption of electrochemistry for preparative organic synthesis: a potentiostat, an analytical device and a stir plate. It is a compact, user friendly and cost effective platform for organic chemists to explore electrochemistry.
The ElectraSyn 2.0 Ready-To-Go package includes all that is required to for your first experiment. including a single 10 mL vial (complete), vial holder and a set of electrodes (graphite).
ElectraSyn 2.0 offers:- standardization
- analytical capabilities
- modularity
- user-friendly interface
- stirring abilities
- future proofing
- industry-leading display
- aesthetic design
- connectivity
- ElectraSyn 2.0 app
- ease of transportation
Accessories are also available, including a carousel which enables six reactions in parallel, electrodes of various materials and sizes, and vials from 1 to 20 mL.
The IKA ElectraSyn App (available for both iPhone and Android) enables reaction and CV experiment monitoring, data transmitting, and various other functions. ElectraSyn is a device that improves over time through regular software updates.Especificação técnica
Nominal voltage (input) 48 VDC Current max. (input) 1500 mA Voltage output 30/10 V Current output 100 mA Saída nominal do motor 9 W ViewReplace 10 Replaced Configurar velocidade de exatidão 10 rpm Máx. quantidade de agitação (H2O) 0.1 l Comprimento barra de agitação 8 - 16 mm Controle de velocidade Turning knob Display TFT Output current resolution 0.1 mA Output voltage resolution 0.01 V Current measuring resolution 0.1 mA Voltage measuring resolution 0.1 V Current measuring accuracy 0.1 ±mA Voltage measuring accuracy 0.01 ±V ViewReplace 50001 Replaced Peso 3.72 kg ViewReplace 50005 Replaced Umidade relativa permissível 80,00% Classe de proteção de acordo com a DIN EN 60529 IP 40 Interface USB sim Tensão 100 - 240 V Freqüência 50/60 Hz Entrada de alimentação 39.84 W Entrada de alimentação Standby 5 W Tensão CC 48 V= Entrada de alimentação 750 mA -
