Descrição

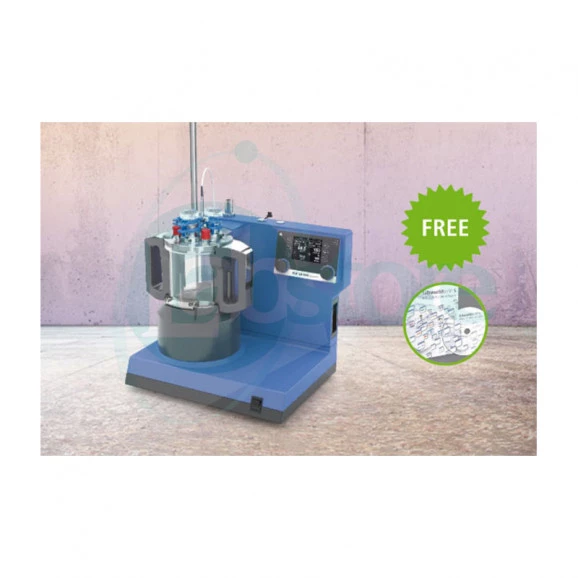

The LR 1000 control is a cost efficient, modular laboratory reactor designed for optimizing chemical reaction processes as well as for mixing, dispersing and homogenization applications at the laboratory scale. The system can be adapted quickly and easily for a wide range of applications and specific requirements. The reactor is especially designed for the unique applications requirements that define the cosmetic and pharmaceutical industries. The temperature of the medium can be as high as 120 ºC. The temperature of the heating source, which is located at the bottom of the vessel, is controlled accordingly to reach the set temperature inside the medium. A PT 100.30 temperature sensor and the corresponding receptacle LR 1000.61 for the lid are included with this package. Prominent features of the LR 1000 control system are the integrated pH sensor connection and the display interface. The latter allows for the display of all process-relevant data onto a PC, save data storage and control of the reactor. The software (accessory) allows for further adaptation of the overall system and processes.
Metals in contact with medium: stainless steel ( ALSI 316 L), FFKM, PTFE, PEEK, borosilicate glass 3.3- Large easy to read TFT display for better image quality and easy navigation
- Integrated weighing funktion
- Torque trend measurement indicates changes in product viscosity
- Integrated pH sensor connection
- RS 232 and USB interface to operate the unit with the laboratory software labworldsoft
- Standard joint fittings on the lid: 2 x NS 29, 2x NS 14, 2 x GL 14 for flexible adaptation of further equipment
- Expandable for use with the ULTRA- TURRAX® T 25 digital (Accessory)
- Vacuum valve included with delivery
- Anchor stirrer with PTFE-scrapers
- Connections to attach a cooling source to the back of the unit
- Manual adjustable safety circuit
- Integrated safety shutdown when vessel or lid is removed from the base
O pacote inclui- LR 1000 control Package
- labworldsoft®
Especificação técnica
Volume utilizável máx. 1000 ml Volume mín. utilizável sem elemento dispersor 500 ml Temperatura de trabalho máx. 120 °C Vácuo alcançável 25 mbar Viscosidade máx. 100000 mPas ViewReplace 10 Replaced Diâmetro da haste de suporte (com fixação integrada no suporte) 16 mm Material em contato com o meio AISI 316L, 1.4571, vidro borossilicato 3.3, PTFE, PEEK, FFKM Aberturas do frasco do reator (unidades/padrão) 2x NS 29/32, 2x NS 14/23 & 2x GL 14 Tempo LIGADO permissível 100,00% Resolução de medição de temperatura 0.1 K Torque nominal 3 Nm Saída de calor 1000 W Pressão de operação permissível para meio de refrigeração 1 bar Máx. alcance de pesagem 2000 g Resolução de pesagem 1 g Velocidade mín. (ajustável) 10 rpm Temperatura de aquecimento máx. 180 °C Circuito de segurança ajustável 47 - 225 °C Circuito de segurança ajustável, desvio valor de temperatura 10 - 20 ±K Temperatura do meio de refrigeração mín. 3 °C Precisão do controle de calor 1 ±K Precisão de controle com sensor 0.2 ±K Desvio de velocidade 5 ±rpm Display de velocidade TFT Controle de calor TFT Conexão para sensor de temperatura ext. PT 100 Fixação do elemento de agitação eixo de saída especial Display de torque sim Medição de torque tendência Temporizador sim Display do temporizador TFT Controle de velocidade Passos 1 RPM Tipo de refrigeração fluxo Display de temperatura sim Sensor de temperatura de trabalho PT 100 Sensor de temperatura de segurança PT1000 Display de temperatura de trabalho TFT Display de temperatura de segurança TFT Display para operação com sensor ext. sim Disjuntor de segurança sim Interface para phmetro sim Display valor de pH TFT ViewReplace 50001 Replaced Peso 16 kg ViewReplace 50005 Replaced Umidade relativa permissível 80,00% Classe de proteção de acordo com a DIN EN 60529 IP 21 Interface RS 232 sim Interface USB sim Tensão 230 / 115 V Freqüência 50/60 Hz Entrada de alimentação 1200 W -
