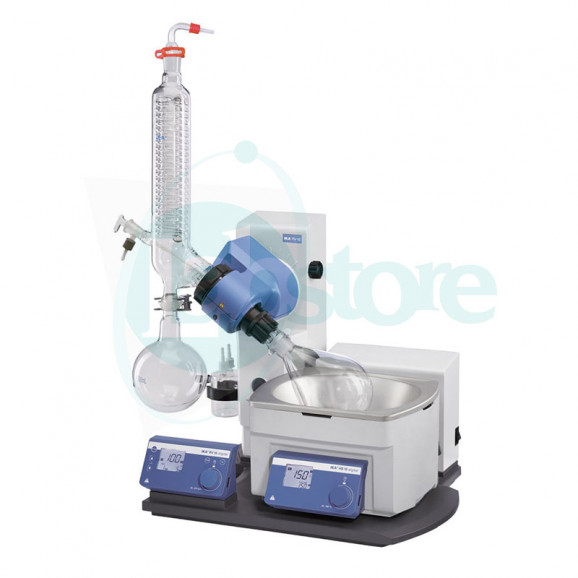

Evaporador rotativo RV 10 digital V

Produto: Em estoque
Ref.: 10186
A Combinar
Quantidade
  • Descrição

    The RV 10 digital represents the continual enhancement of the IKA RV 10 Rotary Evaporator line. The unit comes with a new universal heating bath, vertical glassware, state-of-the-art safety features and digital connectivity. The RV 10 digital is a robust and reliable lab companion. Its optimized bath volume allows for fast heat-up times. The condenser unit has special designed glass tubes that utilize the 1500 cm² surface extremely efficient. That’s why the RV 10 basic delivers reliable and reproducible process results that are usually reserved for more costly systems. Additional features such as smooth start, left-right interval or timer function capability support the user in their daily lab work. Another important aspect of the RV 10 digital are the sophisticated safety features. The motorized lift has an automated lift-out function in case of power outage to prevent superheating of the solvent. Safety temperature circuits can be set individually. Dry-run protection, adjustable lower end stop and lock function of bath setting complete the line of safety features. Furthermore, IKA offers a choice of coated glassware for increased safety needs. The RS 232 interface allows for remote control via IKAs “labworldsoft”. The Heating bath is controlled via the IR interface from the main unit.

    • Universal water/oil heating bath
    • Vertical Glassware
    • Motorized lift with “safety-stop” function
    • RS 232 and IR Interface
    • Optimized heating bath volume for fast heat-up
    • Highly efficient 1500 cm² condenser unit
    • Rugged design
    • Ergonomically placed handles on Heating bath
    • Smooth start
    • Left-right interval
    • Timer function
    • Dry-run protection
    • Safety temperature circuits
    • Lower-end stop
    • Choice of coated glassware
    • Push-off mechanism to loosen tight fitted glassware
    • Easy and safe operation due to ergonomical design of the user interface


    Package description: With heating bath HB 10 and RV 10.1 Set of glassware, vertical

    Especificação técnica

    Tipo de refrigeração Vertical condenser
    Superfície de refrigeração 1500 cm2
    Princípio do motor CC
    ViewReplace 10 Replaced
    Direção de rotação reversível sim
    Elevador Motor
    Tempo 140 mm
    ViewReplace 15 Replaced
    Saída de calor 1300 W
    Precisão do controle de calor 1 ±K
    Volume de banho máx. 3 l
    Temporizador sim
    ViewReplace 50001 Replaced
    Peso 20 kg
    ViewReplace 50005 Replaced
    Umidade relativa permissível 80,00%
    Classe de proteção de acordo com a DIN EN 60529 IP 20
    Interface RS 232 sim
    Tensão 220 - 240 / 115 / 100 - 240 / 100 - 120 / 100 - 115 V
    Freqüência 50/60 Hz
    Entrada de alimentação 1400 W
